CAT CG260-16 ,Year: 2026 , 50 Hz , 4.3 MW

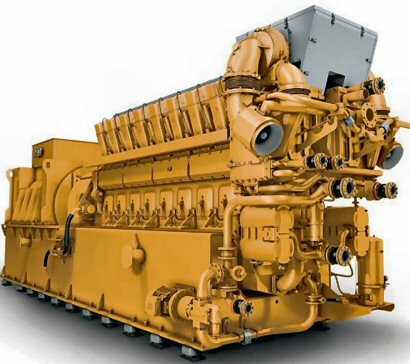

5 Nos  CAT CG260-16 ,Year: 2026 , 50 Hz , 4.3 MW   Fuel Type: Natural Gas Location : Asia  Immediate Delivery  Inspection : Can be arranged subject to terms  A )  Technical Specifications • Model: CAT®️ CG260-16 (16-cylinder, 260mm bore / 320mm stroke) • Electrical Output: 4,300 kWe @ 11 kV, 50 Hz, 1,000 RPM, cos φ = 1.0 • Electrical Efficiency: 44.1% • Total Efficiency (electrical + thermal): 86.8% • Thermal Output: ~3,698 kW (12,626 MBtu/hr), exhaust cooled to 120°C • Genset Dimensions (transport): 9,271mm (L) × 2,790mm (W) × 3,390mm (H) • Dry Weight: ~51,200 kg • NOx Emissions: ≤ 500 mg/Nm³ (dry at 5% O₂) • Fuel: Natural gas, minimum methane number MN 70; minimum heating value Hu = 18 MJ/Nm³ • Configuration: Open package (weatherproof enclosure optional) ________________________________________ B) Included Equipment & Systems Each unit includes: • Base engine and MV alternator • TEM Engine Control System (Engine Control Panel) • Exhaust gas silencer • Remote cooling system radiator • HT and LT circuit pumps and expansion vessels • Lube oil heat exchanger • Air starting motor • Air bottle (2,000L) • 2 electric air compressors (30 bar) per every 3 units • Zero-pressure gas controlled system • Pre-pressure gas train (max. 2–6 bar) • Auxiliary & Synchronisation Panel (HAS) • Neutral ground resistor (NGR) • Seaworthy packing, project management, commissioning, and standard documentation Optional (priced separately): • Drop-over weatherproof/soundproof enclosure (85 dBA @ 7m) with ventilation, internal piping, cabling, lighting, and louvers — shipped loose for site installation
